Front frame Assessment



Update Oct 23 - Worse than I thought....

In preparation for repairing the frame I removed the front suspension and other obstructions, then cleaned off as much of the cement-like mixture of clay and grease.   This provided the chance to check the frame rails and unfortunately the drift begins further aft than I thought, to a max of around 3/16.   The good news is that - I think - the front crossmember is where it should be.










More than I bargained for but so it goes.   Miguela had some rough times in her youth and bears the scars, worst of which is the damage evident in the front subframe and chassis ‘horns’ as pictured here.  I first noticed this when I arrived with the rented uhaul after a 2+ hour drive (with Covid sy symptoms peaking...  my excuse)  I noticed a bit of irregularity and had assumed someone had tweaked something to fit an exhaust pipe.  I should have looked harder, and taken a moment to think....

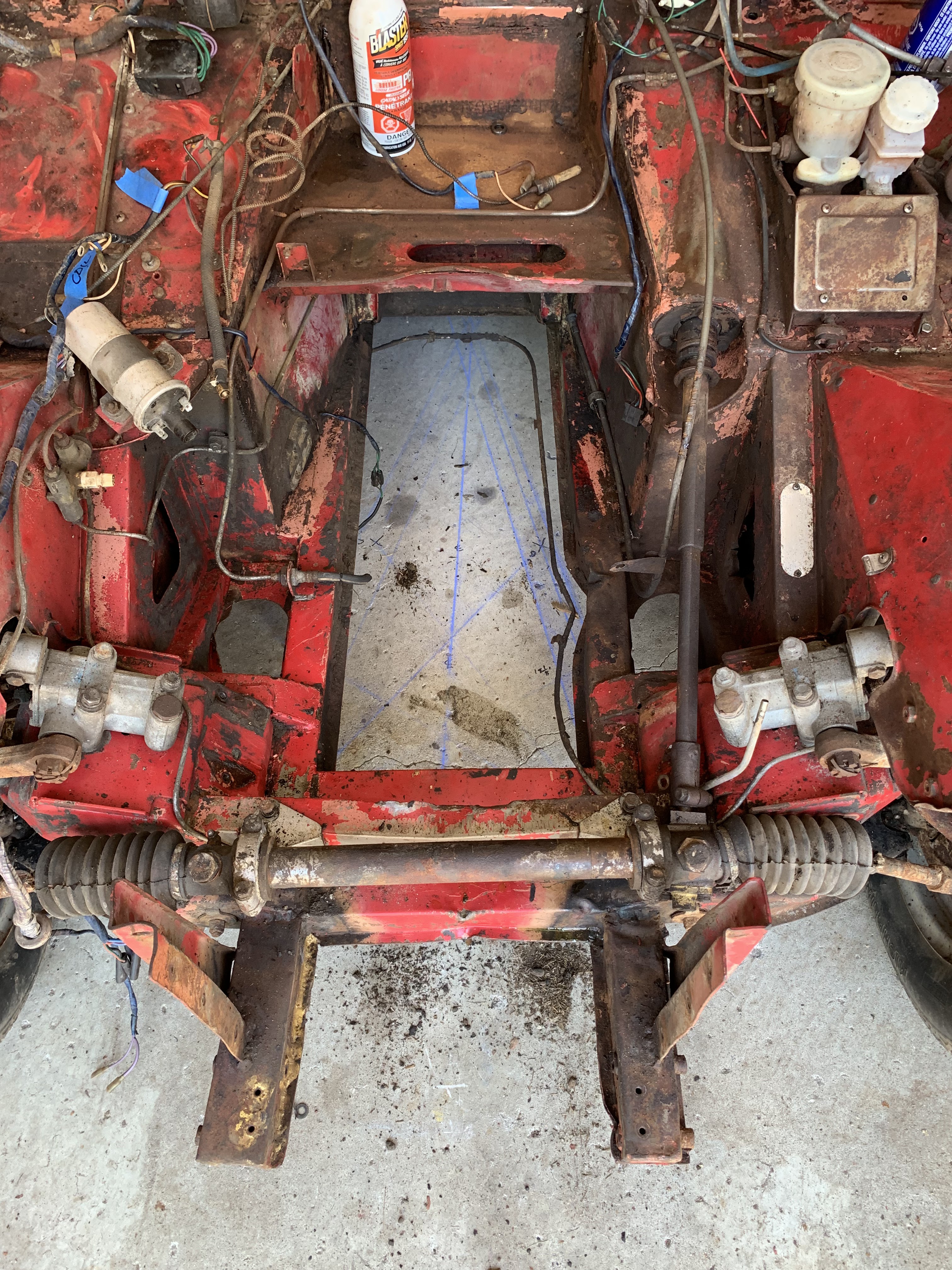

    Fortunately the car is straight in the horizontal plane.  (See the chalk lines on the floor?)

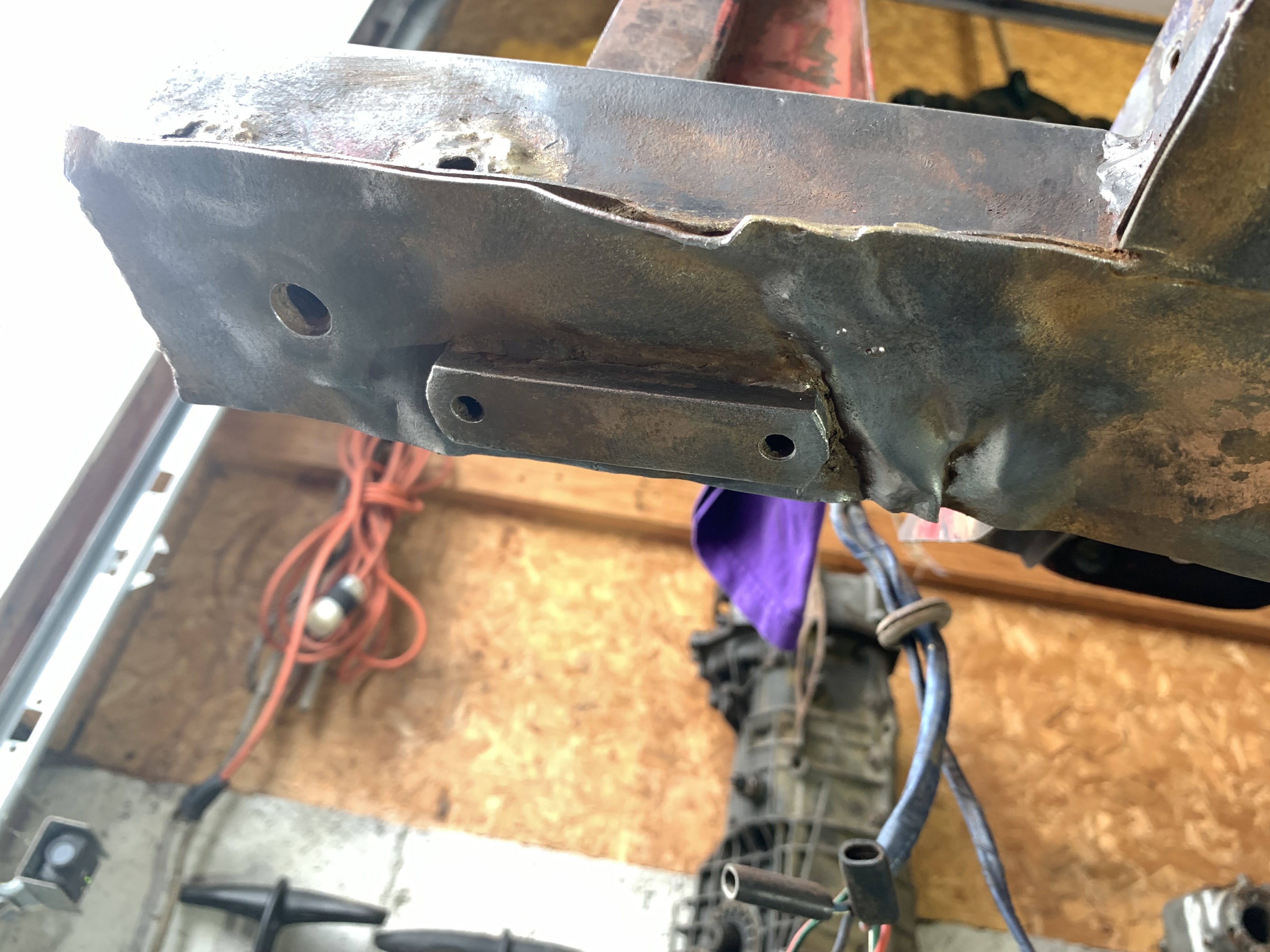

The frame horns’ tortured history….
